Modular pallet racking system
Modular pallet racking for individual solutions

Our modular pallet racking system allows you to tailor every single detail of your pallet racking to your requirements. Shelf and bay load, the number of storage levels and the width of the beams are defined in line with your specifications. An extensive range of system accessories enables the pallet racking to be adapted to an extremely wide variety of loading aids.


Product features

  • Placing and removing items using storage and retrieval systems and industrial trucks
  • Shelf loads up to 4770 kg per pair of beams
  • Bay loads up to 30 t
  • Single-piece upright profiles up to 12 m in height
  • Frames with truss bracing

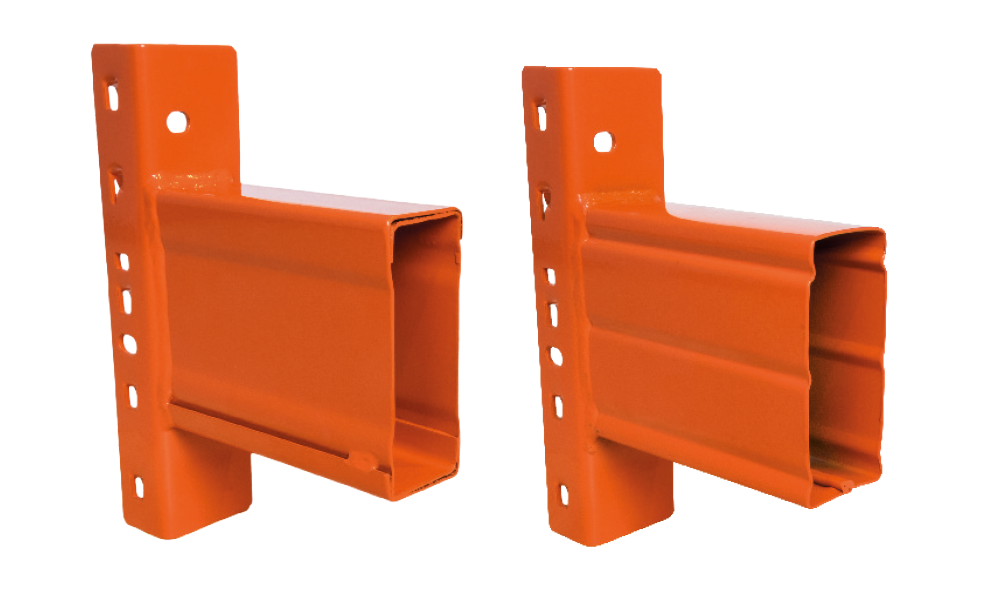

  • High longitudinal and torsional rigidity thanks to up to 5 stable hooks on the agraffes
  • Height of beams can be adjusted in increments of 50 mm
  • Various intermediate upright heights and intermediate beam lengths can be supplied
  • Uprights blue, beams RAL 2004 pure orange, can also be supplied in custom colours
  • Extensive range of system accessories available


Your benefits

  • Easy to erect by simply hooking in the beams
  • Optimum use of storage space and warehouse logistics thanks to custom adaptation
  • Rapid goods handling thanks to single or multi-location storage
  • Safe thanks to exceptionally stable frames with truss bracing
  • High stability from cold-formed box profiles with 5 hooks at the welded-on agraffes

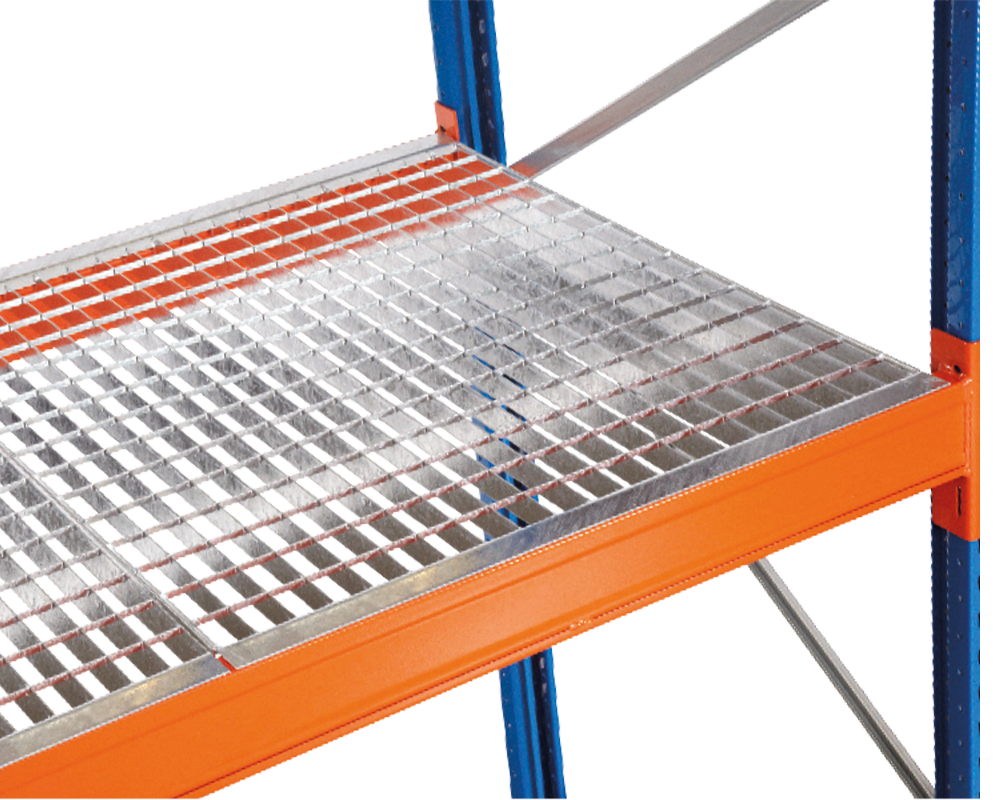

  • Flexible use thanks to system accessories, such for storing flat pallets, pallet cages and other loading aids
  • Long-term planning security thanks to standard uprights


Fields of application

  • Palletised goods, various loading aids, e.g. flat pallets, pallet cages
  • Pallet warehouses
  • Suitable for setting up drive-through, drive-in and first-in first-out systems
