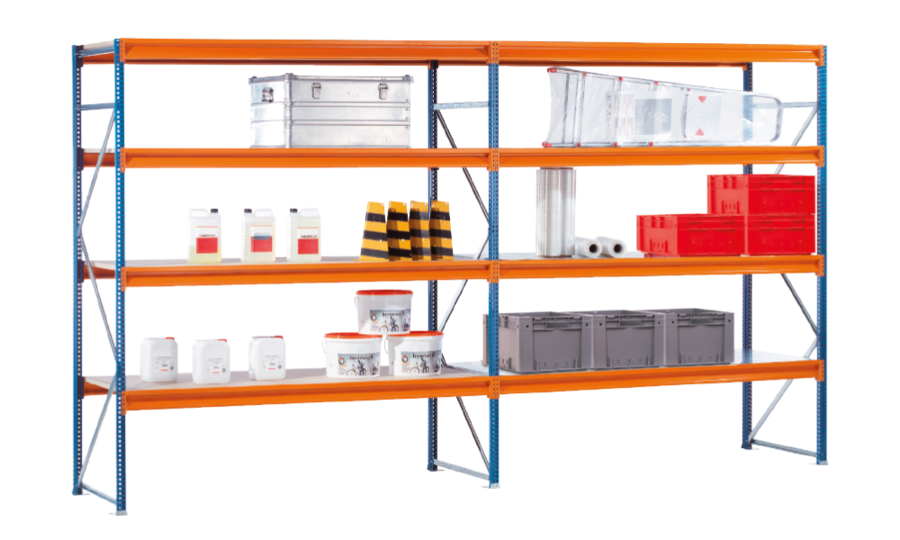

W 100 wide-span shelving

For shelf loads of up to 1,050 kg

With shelf loads of up to 1,015 kg and a maximum bay load of 3,800 kg, it is ideal for manual storage of your heavy goods.

Only pallet racking can handle heavier loads than this wide-span shelving.

Order product online

Shelf bay for
maximum storage space

Can be loaded
by hand from both sides

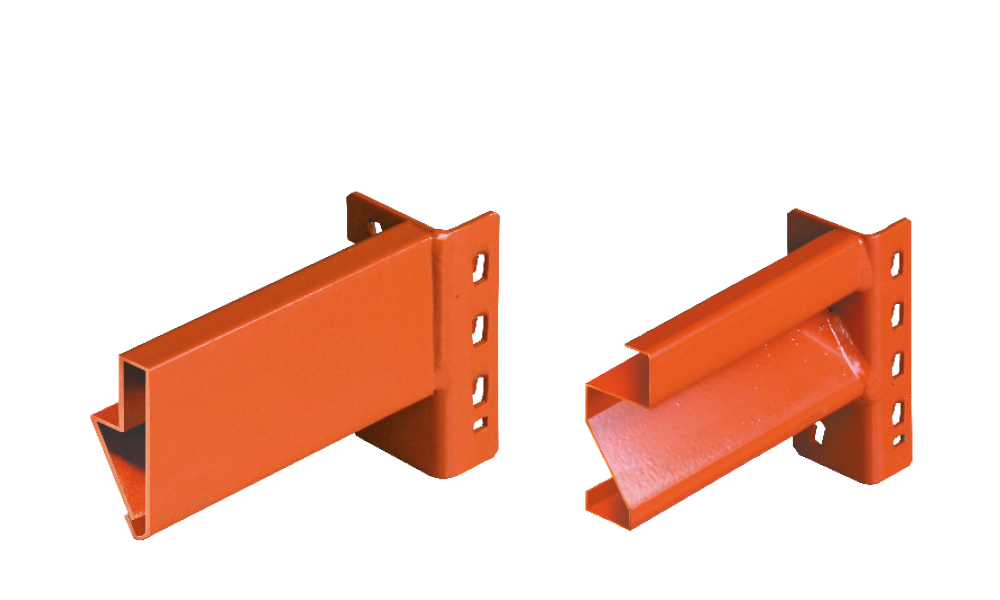

Beams as reinforcement
The shelving is reinforced with either a CO beam or a ZG beam, depending on the load. The highly moulded ZG beam is ideal for heavy loads.

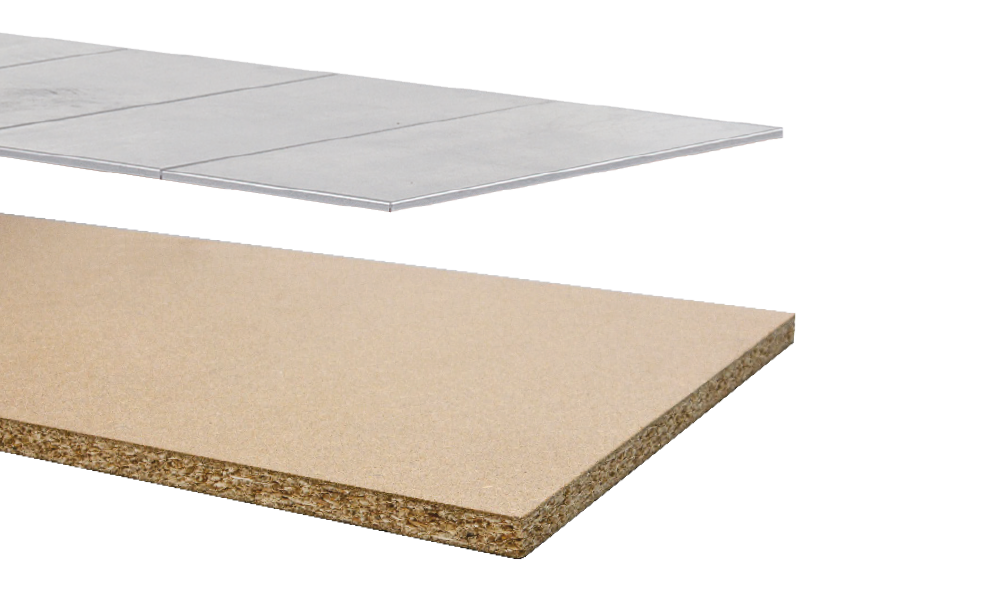

Steel panels or chipboard
The shelving units can be equipped with shelves made of steel panels or chipboard.

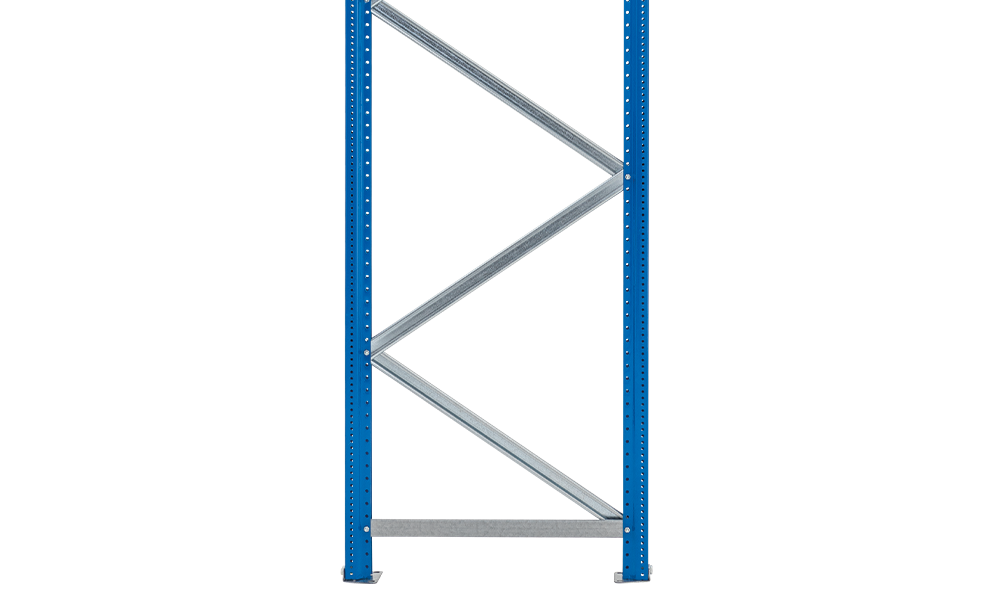

Upright frames
The frames consist of struts and trusses, making them ideal for heavy loads.

Facts and figures

Width	1,785 / 2,140 / 2,500
Thickness	2,000 / 2,500 / 3,000
Depth	600 / 800 / 1,000 / 1,200
	* Dimensions in mm

Maximum shelf load: 1,050 kg
Maximum bay load: 3.8 t
Items can be stored on shelves made of either steel panels or 25-mm chipboard
Different types of beams depending on the required shelf load
Perforations in 20-mm increments allow shelves to be adjusted to the ideal height
Three different shelf widths and shelf heights allow you to adapt the shelving units to ideally suit your space and your stored goods
Convenient storage of bulky and large-volume goods
Quick and easy to adjust the shelving to suit your items thanks to the simple push-fit installation of the beams
Stored goods can be loaded and unloaded from both sides
